1/1.8" 1.47mm 10Megapixel M12x0.5 mount 185degree IR Fisheye Lens for IMX178 Sensor

Name: 118quot 147mm 10Megapixel M12x05 mount 185degree IR Fisheye Lens for IMX178 Sensor
Brand: CCOM LENS
Price: 1 USD

Buy cheap 1/1.8" 1.47mm 10Megapixel M12x0.5 mount 185degree IR Fisheye Lens for IMX178 Sensor product

Place of Origin : China

Model Number : 1180147MP 1180147MPF

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

Board lens : M12 mount fisheye lens

Resolution : 6MP-10MP

FOV : 185degree

Materials : Metal + glass

Contact Now

1/1.8" 1.47mm F2.2 10Megapixel M12x0.5 mount 185degrees IR Fisheye Lens for IMX178 sensor, 1.47mm S-mount panoramic camera IR fisheye lens

MODEL 1180147MP
IMAGE FORMAT 1/1.8"
FOCAL LENGTH(mm) 1.47
MAX IMAGE CIRCLE Φ4.5mm
F.O.V. 185°(D)*185°(H)*185°(V)
RESOLUTION 10MP
APERTURE F2.2
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.1
M.B.F.(mm) 4.5 (in air)

T.T.L.(mm) 30.7 (in air)
DIMENSION(mm) Φ24x26.2

OPERATING TEMPERATURE -30℃～+70℃

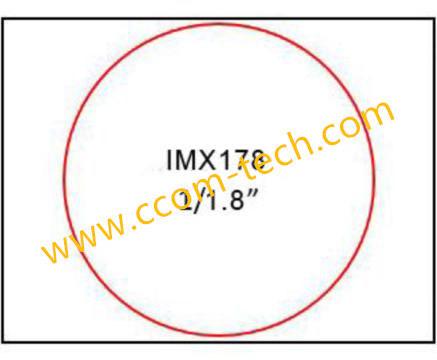

Effect on IMX178:

1/1.8" 1.47mm 10Megapixel M12x0.5 mount 185degree IR Fisheye Lens for IMX178 Sensor

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

1/1.8" 1.47mm 10Megapixel M12x0.5 mount 185degree IR Fisheye Lens for IMX178 Sensor Images
